Product Details:
|
Type: | Carton Printer Slotter Die Cutter Machine | Product Name: | High Quality Semi Automatic Rotary Carton Box Die Cutting Machine |
---|---|---|---|
Name: | Automatic Printer Slotter Machine/ Carton Box Printing Machine | Machine Type: | Corrugated Board Carton Printing Machine |
Product Type: | Paper Box Making Machine | Key Words: | Paper Corrugation Cardboard Production Line |
Application: | Cardboard Printer | Processing Type: | Paper Folding Machine |
Ink Type: | Water Based Ink | Function: | Corrugated Box Printing Machine |
Plate Type: | Flexo Ink Printing | Packaging Type: | Paper Box Making Machine |
Paper Type: | Corrugated Board | Condition: | New Flexo Printer Slotter And Die Cutter Machine |
Keywords: | Paper Corrugation Cardboard Production Line | Item: | Custom Product Packaging Boxes |
Power: | 380V / 220V | ||
Highlight: | Folding Printer Slotter Die Cutter Machine,Printer Slotter Die Cutter Machine 380V |

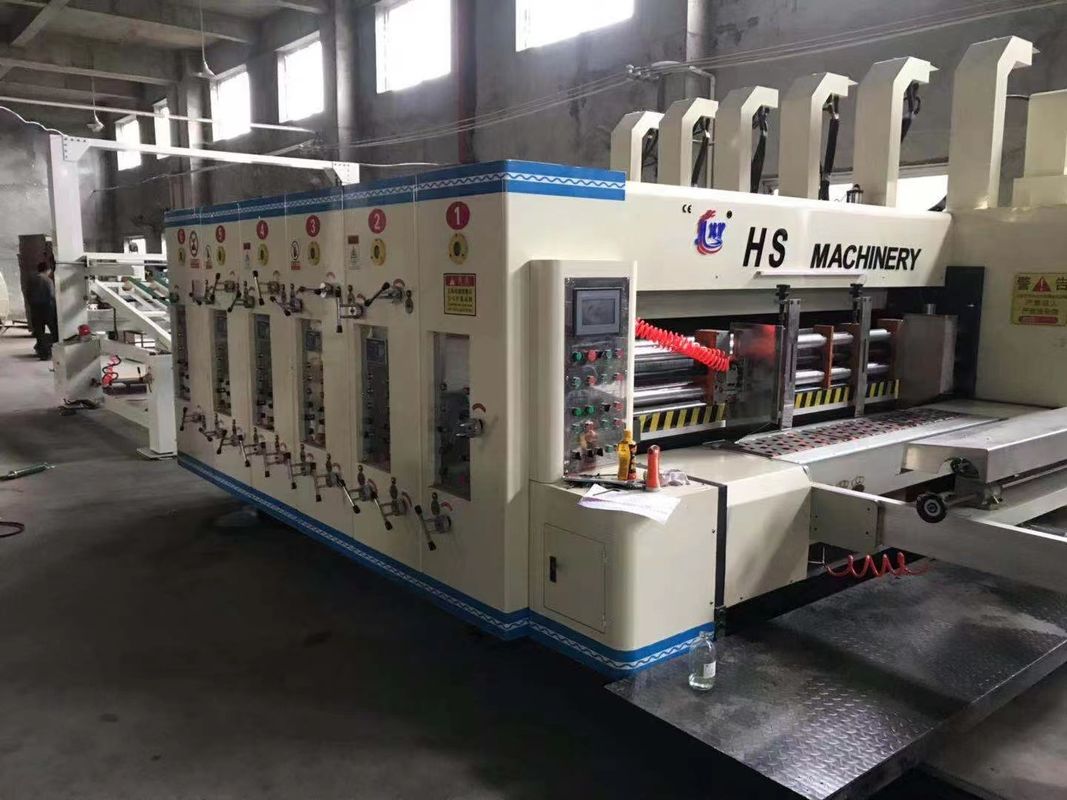

Printer Slotter Die Cutter Machine High Speed 1628 Three Color Printer Slotter Rotary Die Cutter
Model:1600x2800
Product performance
1. Fully computerized roll to roll transfer high speed printing machine.
2. Business contract can be saved in computer system; can be quickly changed, and easy for operation(on separate PC platform).
3. Additional computerized remote maintenance; which can quickly resolve equipment fault, improve repairing efficiency, and lower maintenance cost.
4. All driving rolls are made of high quality steel, galvanized with hard chromium, with surface grinded.
5. All driving gears are made of grinded high quality steel, Rockwell hardness > 60 after heat treatment.
6. Units of the machine can split either in auto or individual; bell rings during movement, ensure safety for operators.
7. Scram(E-stop) button is arranged for each unit, which can stop movements and ensure personal safety of operators in that units.
8. Lubricant auto balancing device, is enable to keep engine oil of each unit in a same level.
A. Independent Lead Edge Feeder;
B. printers
C. motorized slotter
D. RotaryDie Cutter with auto trimming device;
E. Auto Stacker
Automatic Carton Printer Specification
Model | 1600x2800 |
Machine Speed(m/min) | 200 |
Machine Max.speed (pcs/min) | 150 |
Machine Max.feeder Size(mm) | 1600x2800 |
Machine min.feeder Size(mm) | 450x760 |
Machine Max. printer size (mm) | 1500x2700 |
thick of printer Plate(mm) | 7.2 |
Max. slotter Dep (mm) | 560 |
Max. Thickness of Sheet(mm) | 15 |
Machine size (LxWxH)
|
19852x6670x2700 |
Independent Lead Edge Feeder
Item | Descriptions |
1. Lead Edge Feeding system |
1.Vacuum transfer lead edge feeder. 2.Back buffle and side buffle are all motorized adjustment. 3.Feeder sliding block is of aluminum structure to guarantee a more stable working with less vibration. 4.Sheet counting in touch screen. 5.Skip feeding for bigger sheet. 7.Pneumatic lift device with end chain-lock switch for convenient operation. |
2. Machine open/cloe |
1.Button auto control for machine open/close with alarm device to safeguard operators. 2.Pneumatic locking system, whole machine locked on fixed track by feeder main pneumatic cylinder. |
3. Feeding roll | 1. Endurable rubber-coated feeding roll to add use life. |
4. Zero return device | 1.Computer adopts zero return device with memory function to guarantee the same adjustment standard, auto adjustment of correct position to reduce the waste of boards. |
Features of printing units
Item | Features |
1. Printing cylinder |
1.Printing phase adjustment adopts satellite gear wheel structure, PLC control, digital display, 360 degree circumferential adjustment, stable start, correction positioning. 2.Grinded printing cylinder with harm chrome, with cross line and center line, for convenient cliché fixation and sticking, correct positioning and quick cliché registration. 3.Balance treatment, stable running, for high speed running. 4. Quick and convenient fixing system for the printing cliché. 5. Quick cliché change system to speed up the order renewal time. 6.Zero position device for printing cylinder for quick positioning of cliché change and correction, for repeated carton specification change. Foot stepping device for cliché fixation and dismantling. Phase micro adjustment. 7. Printing cylinder left/right movement distance: 10mm. 8. Diameter of printing cylinder: ø524mm,ø304mm(with cliché thickness) |
2. Impression cylinder(ø156mm) |
2.Impression cylinder gap adopts adjustable offset ring, with close structure, precise positioning, adjustment scope: 0-12mm. |
3. Feeding roll |
1.Up feeding roll: grinded and hard chromed. 2.Lower feeding roll: grinded, sand-frosted and hard-chromed. 3.Lower feeding shaft gap adjustment adopts offset ring with close structure, correction positioning, adjustable at 0-12mm. |
4. Rubber roll
|
2.Steel pipe rubber-coated durable for longlife. 3.Super clutch and auto empty run device against ink dry. 4.Midheight grinding for high LPI big space printing. 5. Rubber roll open/close adopts worm gearbox manual adjustment, with worm gearbox for gap adjustment with scale indication. |
5. Anilox roll |
1. Seamless steel pipe for precise processing, balance treatment for stable running, grinding and hard chromed. 2.Longlife running, anti-grinding and erosion, ideal ink transferring and controlling performance. 3.Pneumatic anilox auto elevation device and empty run device. 4.Speed difference between anilox roll and rubber roll for ink doctoring effect to increase printing quality. |
6. Inking system |
1.Single-way pneumatic membrane auto circulating pump. 2. Ink filtering net to filter the dirt for nice printing result. 3.Encased ink chamber. |
7. Phase adjustment structure |
1.Satelite gear wheel design. 2.Motorized circumferential adjustment, digital display, 360 degree run or stop adjustment. 3.PLC control, quick reach, convenient for cliché adjustment. 4. Manual gap Pressure adjustment for all units. |
8. Printing cylinder fixed device |
1.Electromagnetic braking structure. 2.When machine unit separates or adjust phase, braking system to control the running of machine units to keep original gear positioning point. |
9. Printing cylinder fixed device |
1.Electromagnetic braking structure. 2.When machine unit separates or adjust phase, braking system to control the running of machine units to keep original gear positioning point. |
Features of slotting unit
Item | Features |
1. Slotting phase adjustment |
1.High precision inverter to adjust the speed, 360 degree adjustment, quick time. 2.Phase zero positioning device to guarantee slotting position sameness. |
2. Creasing wheel |
1.Manual/motorized adjustment of creasing wheel and slotting knife head position through precise screw pole. 2.Creasing wheel down shaft, slotting knife down shaft adopt offset ring, close structure for precise positioning. |
3. Slitting and slotting knife head |
1.Blade thickness:7mm. Imported high quality alloyed moon-shaped saw slotting blades, high hardness, high endurability, high grindability. 2.Grinded and hard-chromed slotting shaft for stable running. 3.Manual adjustment of slotting knife head, creasing wheel and slitting knife head. 4.Auto detection device of slotting shaft circumferential position, auto record of the position and guarantee the position auto return. 5. Pre-creaser fixed before slotter. 6. Front knife and back knife seated on one shaft. |
Features for Rotary Die Cutting Unit
Item | Features |
1. Die cutting mould cylinder( Down cylinder) |
1.Die cutting cylinder is made by high quality steel, fine grinding, hard chromed. 2. Balance treatment to increase stable running. 3.Die cutting mould fixation screws M10, hole distance at 100mm at transversal direction and 18 equal units at circumferential direction. 4.Die cutting wooden mould thickness 13-15mm(five ply), 16-18mm(three ply). |
2. Rubber mat cylinder(Down cylinder) |
1.Mat cylinder uses high quality steel, grinding, hard chromed. 2.Balance treatment for stable running. 3.Rubber mat thickness 8mm, width 250mm. 4.Rubber mat cylinder mechanical rotary direction change 40mm distance movement structure, movement speed same as the machine running speed. 5.Manual adjustment of die cutting mould gap, adjustment range: 0-16mm. |
3. Phase adjustment device |
1.Satellite gearwheel structure 2.PLC and encoder control of die cutting phase adjustment for start and stop adjustment. |
Introduction
Printing, cutting, and slotting – these are three tasks that have been essential in the packaging industry. And with technological advancements, these tasks have now become faster, more precise, and more efficient. One of the latest innovations in the market today is the 1628 Three Color Printer Slotter Rotary Die Cutter machine from Dong Fang Precision. This new equipment is designed to provide unmatched precision and accuracy in printing, cutting, and slotting.
As the name suggests, the 1628 Three Color Printer Slotter Rotary Die Cutter is a machine that can print, slot and die cut all in one pass. It is designed to improve productivity and efficiency while producing high-quality results. This machine comes equipped with advanced features that allow for unmatched precision, accuracy, and control. With such a machine, you can be sure that your packaging production will be at its peak.
The machine has advanced technology that ensures that the printing process is quick and efficient. It features a three-color printing system that can print high-resolution graphics and text onto cardboard boxes, labels, and other materials. The printing is done on the surface of corrugated cardboard, which is a common packaging material. This machine can print up to three different colors with a maximum printing size of 1600mm x 2800mm. The speed of the printing process is also impressive; it can print at a speed of up to 120 sheets per minute. This means that you can print hundreds and even thousands of packaging boxes within a very short time.
Besides printing, the machine is also equipped with advanced cutting and slotting capabilities. It features a rotary die cutting system that ensures precise cutting of cardboard boxes and other materials. The rotary die cutting system is designed to cut through multiple layers of cardboard boxes accurately. With such a system, the machine can achieve high-precision cuts with minimal waste. The cutting and slotting system is also quick, and it can cut at a speed of up to 160 sheets per minute. This speed ensures that you can produce packaging boxes at a high rate, which will improve your production capacity.
