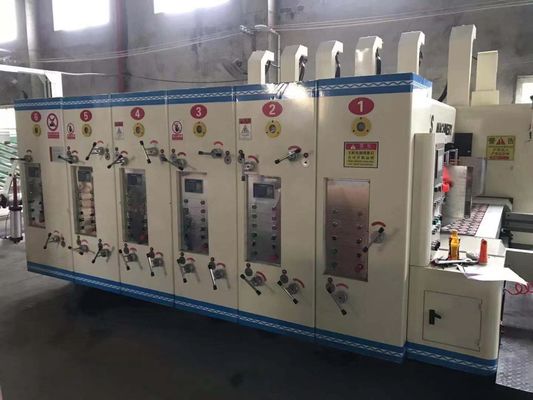

Automatic Corrugated Box Making Machinery Printer Slotter Machine

Automatic Corrugated Box Making Machinery Printer Slotter Machine
Automatic Corrugated Box Making Machinery Printer Slotter Machine

Large Image :  Automatic Corrugated Box Making Machinery Printer Slotter Machine

Product Details:
Place of Origin: China
Brand Name: HS
Certification: CE
Model Number: 1800x3600 jumbo
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD
Packaging Details: plastic film
Delivery Time: 70-90 days
Payment Terms: T/T
Supply Ability: 20 units/month

Automatic Corrugated Box Making Machinery Printer Slotter Machine

Description
Type: Automactic Carton Box Printing Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas
Automatic Grade: Automatic Name: Guangzhou Carton Box Flexo Printer Slotter Die Cutter Stacker Machine
Application: Carton Box Making Machine Condition: New Flexo Printer Slotter And Die Cutter Machine
Usage: For Carton Print Slotting And Die Cutting Machine Type: Corrugated Board Carton Printing Machine
High Light:

Automatic Corrugated Box Making Machinery

,

Corrugated Box Making Machinery Slotter





Corrugated Box Making Machinery Four Color Jumbo Printer Slotter Machine

  Model: 1800x3600



Guangzhou HS machinery  supply various 1-4  Color Flexo Printing  Slotting  Machine products,Vacuum Transfer Flexo Printer Slotter Die-cutter Machine

General descriptions of the whole machine

1 Roller type lead edge feeder for precise feeding, long life and convenience.

2 Main transmission gear using high quality alloyed steel through chamfered and grinding treatment for precise and stable work.

3 Bearings are of Famous brand: NSK, Chinese brand.

4 Key-free rings for high precise transmission to guarantee the correct registration.

5 Manual gap adjustment, convenient and quick.

6 Spray oil lubrication: each gearbox keeps oil for continuous spray lubrication.

7 Electrical auto control system:

8 PLC control, auto sheet counting, speed indication, skip feeding, trouble alarming, etc..

9 Main electrical parts are of Siemens, main motor: TECO.

10 Main machine start protection: no lock, no run, for wrong operation.

11 Motorized walk: motorized open and close, pneumatic lock. Motorized walk with continuous alarming to safeguard the maintenance

12 technicians. Auto braking device to ensure printing unit non-movement.

13 Emergency stop: inside emergency stop on each unit to stop machine walking during maintenance.

Model 1800x3600
Machine Speed(m/min) 160
Machine Max.speed (pcs/min) 150
Machine Max.feeder Size(mm) 1800x3600
Machine min.feeder Size(mm) 450x750
Machine Max. printer size (mm) 1800x3400
thick of printer Plate(mm) 7.2
Max. slotter Dep (mm) 750
Max. Thickness of Sheet(mm) 15

Machine size (LxWxH)



16000x5000x2300



Packaging Box Making Machine Four Color Jumbo Printer Slotter Machine is a highly efficient machine used in the cardboard box manufacturing process. This machine can print, slot, and cut cardboard sheets of different sizes and thicknesses to create customized packaging boxes.

The machine comes with four-color printing options that allow printing logos, designs, and texts on the boxes with high precision and accuracy. It also has a jumbo feeding system that can handle large cardboard sheets, making the production process faster and more efficient.

Moreover, the slotting and cutting features of this machine can be adjusted according to the required dimensions of the packaging boxes. This ensures that the boxes are produced to the required specifications and are of high quality.

Overall, Packaging Box Making Machine Four Color Jumbo Printer Slotter Machine is a reliable and versatile machine that can streamline the production process and produce high-quality packaging boxes.

The FourColorJumboPrinterSlotterMachine is a high-end printing and slotting machine that requires specialized care and attention. Before operating the machine, ensure that all safety protocols are in place, including protective gear such as gloves, goggles, and face masks. It is also recommended to have a qualified technician on standby in case of any malfunctions.

When setting up the machine, make sure that all parts are properly aligned and lubricated. The ink and printing plates should be of high quality and matched to the machine's specifications. The paper roll should be smoothly fed into the machine without any wrinkles or creases, and the printing and slotting tools should be adjusted for optimal performance.

During operation, it is important to monitor the print quality and adjust the colors and settings as needed. Be cautious when handling sharp blades and ensure that all safety guards are in place. Regular cleaning and maintenance of the machine is crucial for preventing breakdowns and maximizing its lifespan.

When shutting down the machine, take extra care to clean and store the printing plates and tools properly. Turn off the power and remove any leftover ink or debris. Always follow the manufacturer's instructions and guidelines for proper usage and maintenance of the FourColorJumboPrinterSlotterMachine.

Automatic Corrugated Box Making Machinery Printer Slotter Machine 0

Independent Lead Edge Feeder





Item Descriptions



1.Lead Edge Feeding system

1.Vacuum transfer lead edge feeder.

2.Back buffle and side buffle are all motorized adjustment.

3.Feeder sliding block is of aluminum structure to guarantee a more stable working with less vibration.

4.Sheet counting in touch screen.

5.Skip feeding for bigger sheet.

7.Pneumatic lift device with end chain-lock switch for convenient operation.

2.Machine open/close

1.Button auto control for machine open/close with alarm device to safeguard operators.

2.Pneumatic locking system, whole machine locked on fixed track by feeder main pneumatic cylinder.

3.Feeding roll 1. Endurable rubber-coated feeding roll to add use life.
4. Zero return device 1.Computer adopts zero return device with memory function to guarantee the same adjustment standard, auto adjustment of correct position to reduce the waste of boards.


Features of printing units

Automatic Corrugated Box Making Machinery Printer Slotter Machine 1

Item Features













1.Printing cylinder

1.Printing phase adjustment adopts satellite gear wheel structure, PLC control, digital display, 360 degree circumferential adjustment, stable start, correction positioning.

2.Grinded printing cylinder with harm chrome, with cross line and center line, for convenient cliché fixation and sticking, correct positioning and quick cliché registration.

3.Balance treatment, stable running, for high speed running.

4. Quick and convenient fixing system for the printing cliché.

5. Quick cliché change system to speed up the order renewal time.

6.Zero position device for printing cylinder for quick positioning of cliché change and correction, for repeated carton specification change. Foot stepping device for cliché fixation and dismantling. Phase micro adjustment.

7. Printing cylinder left/right movement distance: 10mm.

8. Diameter of printing cylinder: ø524mm,ø536mm(with cliché thickness)

2.Impression cylinder(ø156mm)

1.Seamless steel pipe for precise processing, balance treatment for stable running, grinding and hard chromed.

2.Impression cylinder gap adopts adjustable offset ring, with close structure, precise positioning, adjustment scope: 0-12mm.

3.Feeding roll

1.Up feeding roll: grinded and hard chromed.

2.Lower feeding roll: grinded, sand-frosted and hard-chromed.

3.Lower feeding shaft gap adjustment adopts offset ring with close structure, correction positioning, adjustable at 0-12mm.

  1. Rubber roll





Seamless steel pipe for precise processing, balance treatment for stable running, grinding and hard chromed.

2.Steel pipe rubber-coated durable for longlife.

3.Super clutch and auto empty run device against ink dry.

4.Midheight grinding for high LPI big space printing.

5. Rubber roll open/close adopts worm gearbox manual adjustment, with worm gearbox for gap adjustment with scale indication.

5.Anilox roll

1. Seamless steel pipe for precise processing, balance treatment for stable running, grinding and hard chromed.

2.Longlife running, anti-grinding and erosion, ideal ink transferring and controlling performance.

3.Pneumatic anilox auto elevation device and empty run device.

4.Speed difference between anilox roll and rubber roll for ink doctoring effect to increase printing quality.

6.Inking system

1.Single-way pneumatic membrane auto circulating pump.

2. Ink filtering net to filter the dirt for nice printing result.

3.Encased ink chamber.

7.Phase adjustment structure

1.Satelite gear wheel design.

2.Motorized circumferential adjustment, digital display, 360 degree run or stop adjustment.

3.PLC control, quick reach, convenient for cliché adjustment.

4. Manual gap Pressure adjustment for all units.

8.Printing cylinder fixed device

1.Electromagnetic braking structure.

2.When machine unit separates or adjust phase, braking system to control the running of machine units to keep original gear positioning point.

8.Printing cylinder fixed device

1.Electromagnetic braking structure.

2.When machine unit separates or adjust phase, braking system to control the running of machine units to keep original gear positioning point.

Features of slotting unit

Item Features
1.Slotting phase adjustment

1.High precision inverter to adjust the speed, 360 degree adjustment, quick time.

2.Phase zero positioning device to guarantee slotting position sameness.

2.Creasing wheel

1.Manual adjustment of creasing wheel and slotting knife head position through precise screw pole.

2.Creasing wheel down shaft, slotting knife down shaft adopt offset ring, close structure for precise positioning.

3. Slitting and slotting knife head

1.Blade thickness:7mm. Imported high quality alloyed moon-shaped saw slotting blades, high hardness, high endurability, high grindability.

2.Grinded and hard-chromed slotting shaft for stable running.

3.Manual adjustment of slotting knife head, creasing wheel and slitting knife head.

4.Auto detection device of slotting shaft circumferential position, auto record of the position and guarantee the position auto return.

5. Pre-creaser fixed before slotter.

6. Front knife and back knife seated on one shaft.

Features for Rotary Die Cutting Unit



Item Features





1.Die cutting mould cylinder( Down cylinder)

1.OD:ø537mm(with die cutting mould thickness);

2.Die cutting cylinder is made by high quality steel, fine grinding, hard chromed.

3. Balance treatment to increase stable running.

4.Die cutting mould fixation screws M10, hole distance at 100mm at transversal direction and 18 equal units at circumferential direction.

5.Die cutting wooden mould thickness 13-15mm(five ply), 16-18mm(three ply).



2.Rubber mat cylinder(Down cylinder)

1.OD: ø434.2mm

2.Mat cylinder uses high quality steel, grinding, hard chromed.

3.Balance treatment for stable running.

4.Rubber mat thickness 8mm, width 250mm.

5.Rubber mat cylinder mechanical rotary direction change 40mm distance movement structure, movement speed same as the machine running speed.

6.Manual adjustment of die cutting mould gap, adjustment range: 0-16mm.

3.Phase adjustment device

1.Satellite gearwheel structure

2.PLC and encoder control of die cutting phase adjustment for start and stop adjustment.

Vibration Stripper Auto Stacker



Automatic Corrugated Box Making Machinery Printer Slotter Machine 2





Item Features
1.Table elevation 1.Photocell sensor system to control table elevation, auto elevation according to paperboard stacking height, table elevation transmission with braking function and safety device to ensure fixed position.
2.Stacking arm

1.Pneumatic adjustment of paperboard stacking arm.

2.Stacking arm rotates belts, separate adjustment of belt tension, not limited by belt length.

3.Transmission belt 1.Powerful transferring belts to guarantee friction and long life.
4.Auxilliary stacking board

1.Pneumatic cylinder control.

2.Auxilliary board delivery device for non-stop delivery.

3.Pneumatic stacking board for temporary support, manual adjustment of back buffle position.

5.Waste removal To remove the die cutting waste by the belt vibration action.
5. Max. stacking height 1600mm.

Others

Item Origin Qty.
Bearings NSK, HRB,LUOYANG,WAFANGDIAN ALL
AC CONTACTOR, THERMAL RELAY Siemens ALL
PLC Siemens ALL
ENCODER Siemens ALL
TOUCH SCREEN Siemens ALL
DISPLAY SCREEN Siemens ALL
INVERTER Siemens ALL
AC CONTACTOR,PHOTOCELL SENSOR SWITCH Siemens ALL
DIE CUTTING RUBBER MAT CHIINA FAMOUS BRAND ALL











Automatic Corrugated Box Making Machinery Printer Slotter Machine 3



 Jumbo size  Ink flexo printer slotting die cutting machine, corrugated box packaging machine to  hot sell



there machines are generally used in manufacturing industries for packaging purposes, where it's essential to have attractive and eye-catching printed designs on the boxes or other materials used for packaging. A four-color printer and a slotter machine ensure an efficient and high-quality process of printing and cutting, producing precise and customized designs on the materials.
