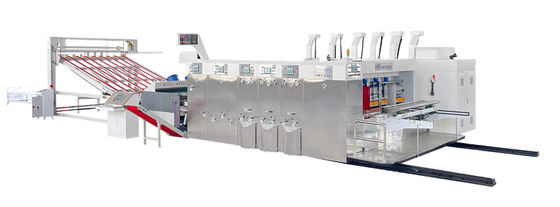

Carton Corrugated Cardboard Box Making Machine Printer Slotter Die Cutter

Certification
China Guangzhou HS Machinery Co., Ltd. certification
China Guangzhou HS Machinery Co., Ltd. certification
I'm Online Chat Now

Carton Corrugated Cardboard Box Making Machine Printer Slotter Die Cutter

Carton Corrugated Cardboard Box Making Machine Printer Slotter Die Cutter
Carton Corrugated Cardboard Box Making Machine Printer Slotter Die Cutter

Large Image :  Carton Corrugated Cardboard Box Making Machine Printer Slotter Die Cutter

Product Details:
Place of Origin: China
Brand Name: HS
Certification: CE
Model Number: jumbo 2200x5200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD
Packaging Details: plastic film
Delivery Time: 120 days
Payment Terms: T/T
Supply Ability: 20 units/month

Carton Corrugated Cardboard Box Making Machine Printer Slotter Die Cutter

Description
Type: Packaging Line Automatic Grade: Automatic
Usage: Corrugated Box Product Name: Corrugated Cardboard Printing Die Cutting Machine
Name: Box Making Machines And Carton Paper Making Machine Ink Type: Water-based Ink
Application: Cardboard Printer Machine Type: Corrugated Paperboard Making Machine
High Light:

Carton Corrugated Cardboard Box Making Machine

,

Corrugated Cardboard Box Making Machine

,

Corrugated Cardboard Making Machine

Carton Printing Machine Two Color Printer Slotter Die Cutter In Line Case Maker

Model:jumbo 2200x5200


When using the TwoColorPrinterSlotterDieCutterInLineCaseMake, it is important to keep in mind several things to ensure optimal performance and safety. First and foremost, always follow the manufacturer's instructions and safety guidelines. Make sure the machine is properly installed and maintained before use.
To avoid injury, never touch the moving parts of the machine, such as the printer, slotter, die cutter, or conveyor belt while the machine is in operation. Always use the proper tools and accessories when handling the machine, and wear personal protective equipment, such as safety glasses and gloves.
When working with the printer, make sure to properly load the ink cartridges and paper. Always avoid using damaged or incompatible materials, as this can result in poor print quality or damage to the machine. Additionally, regularly clean the printer heads to ensure clear and precise prints.
When using the slotter and die cutter, be sure to properly align and secure the cutting tool before use. Always use the correct size of cutting tools, as using larger or smaller than required can result in damage to the machine or material.
Finally, be sure to regularly inspect the machine for any signs of damage or wear, and address any issues immediately. Following these guidelines will help ensure safe and efficient operation of the TwoColorPrinterSlotterDieCutterInLineCaseMake.


Model2200x5200 jumbo
Machine Speed(m/min)120
Machine Max.speed (pcs/min)100
Machine Max.feeder Size(mm)2200x5200
Machine min.feeder Size(mm)500x1800
Machine Max. printer size (mm)2200x5000
thick of printer Plate(mm)7.2
Max. slotter Dep (mm)750
Max. Thickness of Sheet(mm)15

Machine size (LxWxH)


39000x8300x2800

Features

1. The bottom printing printer slotter die cutter in line case maker consists of lead edge feeder,bottom printers, slotter, die cutter in line case           maker, counter ejector and delivery section.

2.  All the units can move, all the rollers gap adjusted by PLC and touch screen, all the electric parts are Siemens.

3.  Gears are made of 20CrMnTi,HRC 55-62, class 6 precision. Main Bearings SKF, the others are of NSK.

4.  Pull roll transfer at all printing units.

5. Ceramic anilox rollers with LPI arrangements within 220-600LPI which the Buyer can choose.

6. LED display of speed and finished quantity.

 Lead edge feeder

Carton Corrugated Cardboard Box Making Machine Printer Slotter Die Cutter 0

Carton Corrugated Cardboard Box Making Machine Printer Slotter Die Cutter 1Carton Corrugated Cardboard Box Making Machine Printer Slotter Die Cutter 2



1) Servo control free-pressure feeding system adopted to avoid the cardboard being pressed ,improve the pressure resistance of cardboard

2) All the baffles are adjust by electric control

3) Guide rail support the right-left baffle move precise and smoothly.

4) The feeding rollers are grinded and plated with rigid chrome, make blance rectification for running stable.

5) Feeding rollers gap adjusted by PLC and touch screen
6) First row of feeding rollers: Upper feeding roller diameter is 132 mm ,seamless steel covered with wear-resistant rubber treated by balance rectification. Down feeding roller diameter is 156 mm, seamless steel with knurling surface,treated by balance rectification.
7) Second row of feeding rollers:Upper feeding roller diameter is 86 mm with dia two 132mm feeding rings ,seamless steel pipe is plated with chrome and grinded surface,treated by balance rectification
Down feeding roller diameter is 156 mm, seamless steel pipe is plated with chrome and grinded surface,treated by balance rectification.


Bottom Printers

Pull roll transfer
a) The pull roll transfer adopts for the whole process feeding can feed the cardboard smoothly and precisely;
1. Roller undergoes grinded and plated with rigid chrome, make the balance rectification for running stable
2. Ceramic anilox roller external diameter is 330¢mm, for solid printing and high graphic printing(220-600lpi optional);
3. Single blade chamber doctoring blade system with airbag support to meter the ink volume for even inking result.
4. Printing roller diameter: mm (including 7.2mm printing plate with liner)
5. Printing pressing roller external diameter is ¢186mm,Steel pipe is plated with rigid chrome and grinded surface.
6. Ratchet wheels fixed plate axle
7. Loading and unloading printing template, electric controlling CW/CCW rolling by foot switch
8. Printing roller Horizontal movement is controlled by PLC adjustment of +/-5mm

   Automatic pneumatic lifting gear working with feeding system(Anilox roller lowers down to touch printing template during feeding and rises up to     leave printing template after stopping feeding.)
9. Printing roller circular move adopts PLC, touch screen control and inverter adjustment of 360o.(running and stopping can be adjusted)
10.  Automatic re-position after washing the printing plate during the printing process.
11. Automatic ink washing system.

Double Slotter ( two shafts, two blades)
Carton Corrugated Cardboard Box Making Machine Printer Slotter Die Cutter 3
Carton Corrugated Cardboard Box Making Machine Printer Slotter Die Cutter 4


1) Double shaft slotting unit consists of pre creasing wheel, first slotting, creasing wheel and second slotting
2) Creasing wheel with PU Plated for good creasing and avoiding paper crack

3) Pre creasing roller and creasing roller gap adjusted by touch screen control

4) Creasing rollers diameter:110mm,plated with rigid chrome and grinded surface,treated by balance rectification.

5) Slotting holder rollers diameter:124mm,plated with rigid chrome and grinded surface,treated by balance rectification.

6) Cast steel slotting guide plates makes slotting precise and never damage the slotting knife.

7) 9 Crsi Slotting knives

8) All the knives move and slotting holder move adjusted by PLC control

9) Slotting holder rollers gap adjusted by electric control




Carton Printing Machine is a versatile piece of printing equipment that is capable of producing high-quality prints on corrugated cartons. The machine comprises a variety of modules to perform various operations, including printing, slotting, die-cutting, and case-making. The in-line case making feature of the machine ensures that the entire process is streamlined and fast-track.
One significant advantage of the Carton Printing Machine is that it can print on both sides of the corrugated carton simultaneously. The Machine uses water-based inks, which dry quickly, ensuring that the cartons are ready for use immediately after printing. This feature is particularly useful for those in the packaging industry, where quick turnaround times are essential.
A two-color printer is an essential component of the Carton Printing Machine. The printer is capable of creating high-quality prints with a resolution of up to 600 dpi. The printer's speed is adjustable, depending on the quality of the print required and the type of substrate used. The two colors can be used in combination to create multicolored prints in a single pass. This feature saves time and reduces production costs.
The Slotter is another important module of the Carton Printing Machine. It ensures that the corrugated cartons are cut to the required size and shape. The slotter can perform both straight and curved cutting operations, depending on the shape of the carton. The slotting module is designed to ensure that the cuts are precise and accurate, thereby reducing wastage.
