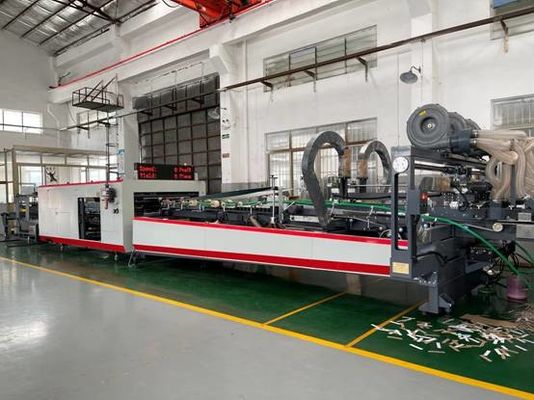

Automatic Jumbo Flexo Folder Gluer Inline Carton Box Folder Gluer

Automatic Jumbo Flexo Folder Gluer Inline Carton Box Folder Gluer
Automatic Jumbo Flexo Folder Gluer Inline Carton Box Folder Gluer

Large Image :  Automatic Jumbo Flexo Folder Gluer Inline Carton Box Folder Gluer

Product Details:
Place of Origin: China
Brand Name: HS
Certification: CE
Model Number: 1600x3600
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD
Packaging Details: plastic film
Delivery Time: 100 days
Payment Terms: T/T
Supply Ability: 20 units/month

Automatic Jumbo Flexo Folder Gluer Inline Carton Box Folder Gluer

Description
Type: Paper Cutting Machine Product Name: High Quality Semi Automatic Rotary Carton Box Die Cutting Machine
Name: Box Making Machines And Carton Paper Making Machine Machine Type: Automatic Die Cutting Machine
Usage: Corrugated Box Product Type: Paper Box Making Machine
Key Words: Paper Corrugation Cardboard Production Line Application: Industrial Paper Cutting Machine
Color: Any Color Processing Type: Box Making Machines
Plate Type: Flexo Ink Printing Function: Make Carton Papercard
Item: Custom Product Packaging Boxes
High Light:

Automatic Jumbo Flexo Folder Gluer

,

Jumbo Flexo Folder Gluer

,

Carton Box Folder Gluer

 Carton Die Cutting Machine Jumbo Automatic Carton Printer Inline Folder Gluer

Model:jumbo1600x3600









1. The machine is designed according to high request and reliable function, humanization operation, it can set, change and memory orders in short time, with touch screen display.

2. All of drive rollers are made of super quality steel, hard chrome plated, with surface two times grinding, and make balance adjustment.

3. Transmission gears, planetary gear, registering gear, Axle sleeve gear are made from 20GrMnTi. Teeth carburized and quenched; the hardness is HRC58-62. Precisely ground and more stable running. (Ground by Germany High-Precise gear grinding machine. The precision grade up to 6.5

4. The machine with automatic lubrication and oil recycle system.

Standard equipments:

A. Independent Lead Edge Feeder;

B. printers with chrome anilox rollers

C. motorized slotter

D. RotaryDie Cutter with auto trimming device;

E. Inline Folder Gluer Machine

F. Inline PP tape auto binding machine



 Automatic Jumbo Flexo Folder Gluer Inline Carton Box Folder Gluer 0



General descriptions of the whole machine



1. Roller type lead edge feeder for precise feeding, long life and convenience.

2. Main transmission gear using high quality alloyed steel through chamfered and grinding treatment for precise and stable work.

3. Bearings are of Famous brand: NSK, HRB.

4. Key-free rings for high precise transmission to guarantee the correct registration.

5. Manual gap adjustment, convenient and quick.

6. Spray oil lubrication: each gearbox keeps oil for continuous spray lubrication.

Electrical auto control system:

7 .PLC control, auto sheet counting, speed indication, skip feeding, trouble alarming, etc..

8. Main electrical parts are of Siemens, main motor: Siemens.

9. Main machine start protection: no lock, no run, for wrong operation.

10. Motorized walk: motorized open and close, pneumatic lock. Motorized walk with continuous alarming to safeguard the maintenance technicians. Auto braking device to ensure printing unit non-movement.

11. Emergency stop: inside emergency stop on each unit to stop machine walking during maintenance.

Automatic Jumbo Flexo Folder Gluer Inline Carton Box Folder Gluer 1Automatic Jumbo Flexo Folder Gluer Inline Carton Box Folder Gluer 2 Automatic Jumbo Flexo Folder Gluer Inline Carton Box Folder Gluer 3





 Independent Lead Edge Feeder

Item Descriptions



1. Lead Edge Feeding system

1. Vacuum transfer lead edge feeder.

2. Back buffle and side buffle are all motorized adjustment.

3. Feeder sliding block is of aluminum structure to guarantee a more stable working with less vibration.

4. Sheet counting in touch screen.

5. Skip feeding for bigger sheet.

7. Pneumatic lift device with end chain-lock switch for convenient operation.

2. Machine open/cloe

1. Button auto control for machine open/close with alarm device to safeguard operators.

2. Pneumatic locking system, whole machine locked on fixed track by feeder main pneumatic cylinder.

3. Feeding roll 1. Endurable rubber-coated feeding roll to add use life.
4. Zero return device 1. Computer adopts zero return device with memory function to guarantee the same adjustment standard, auto adjustment of correct position to reduce the waste of boards.


Features of printing units



  1. Printing plate fast change, with foot-switch control the rotate of cylinder clockwise or anticlockwise.
  2. All the gaps mot
  3. rinting register servo control.
  4. Laser engraved ceramic anilox roll, 250-350LPI.
  5. Rubber Roller as standard, and chamber blade system is Optional.
  6. With Surveillance System to check cardboard transmission situation.
  7. Programming auto wash ink chamber system.
  8. Auto zero- set for printing position.





Features of slotting unit





Item Features
1. Slotting phase adjustment

1. High precision inverter to adjust the speed, 360 degree adjustment, quick time.

2. Phase zero positioning device to guarantee slotting position sameness.

2. Creasing wheel

1. Manual/motorized adjustment of creasing wheel and slotting knife head position through precise screw pole.

2. Creasing wheel down shaft, slotting knife down shaft adopt offset ring, close structure for precise positioning.

3. Slitting and slotting knife head

1. Blade thickness:7mm. Imported high quality alloyed moon-shaped saw slotting blades, high hardness, high endurability, high grindability.

2. Grinded and hard-chromed slotting shaft for stable running.

3. Manual adjustment of slotting knife head, creasing wheel and slitting knife head.

4. Auto detection device of slotting shaft circumferential position, auto record of the position and guarantee the position auto return.

5. Pre-creaser fixed before slotter.

6. Front knife and back knife seated on one shaft.



Features for Rotary Die Cutting Unit





Item Features





1. Die cutting mould cylinder( Down cylinder)

1. Die cutting cylinder is made by high quality steel, fine grinding, hard chromed.

2. Balance treatment to increase stable running.

3. Die cutting mould fixation screws M10, hole distance at 100mm at transversal direction and 18 equal units at circumferential direction.

4. Die cutting wooden mould thickness 13-15mm(five ply), 16-18mm(three ply).

2. Rubber mat cylinder(Down cylinder)

1. Mat cylinder uses high quality steel, grinding, hard chromed.

2. Balance treatment for stable running.

3. Rubber mat thickness 8mm, width 250mm.

4. Rubber mat cylinder mechanical rotary direction change 40mm distance movement structure, movement speed same as the machine running speed.

5. Manual adjustment of die cutting mould gap, adjustment range: 0-16mm.

3. Phase adjustment device

1. Satellite gearwheel structure

2. PLC and encoder control of die cutting phase adjustment for start and stop adjustment.





Auto Folder Gluer Machine

Automatic Jumbo Flexo Folder Gluer Inline Carton Box Folder Gluer 4

Automatic Jumbo Flexo Folder Gluer Inline Carton Box Folder Gluer 5



Machine composition and operation principle

Functions and Features:

1. Connect with printing machine, make printing, slotting, die-cutting, gluing, folding, Calibration, counting, palletizing, packing, output.

2. The maximum production line speed is 200m/min.

3. Whole machine online control, computer storage order, remote control operation, digital input.

4. Key transmission purchases imported brand bearings, high-speed transmission belts,

5. The power of the glue box part: 8kw, the packing part: 2kw

6. Stick box part: 10*2.5 meters. Packing department: 4*2 meters

7. Gluing part: stainless steel gluing wheel, corrosion-resistant, uniform gluing,

8.  Electrical appliances: all use international top brands, stable and reliable quality

Second,

the working principle of the machine: the glue box and the printing die-cutting part are connected, used and run synchronously, so that the printed, die-cut or slotted cardboard can smoothly enter the glue box, the baler is connected with the glue box, and when the cardboard is coated glue,

Folding, correcting, stacking and transporting to the baler, the baler has a photoelectric sensor to sense and transmit the signal to the plc, and the plc controls the operation of each part of the baler.

Optional parts of the machine:

1.  Automatically supply glue, circulate glue, never break glue, no need to manually add glue, saving time and effort. Applicable to all kinds of glue.

2. Stainless steel gluing wheel, corrosion resistance, wear resistance, uniform gluing, saving glue, the amount of glue used is about one third of that of manual gluing.

3. The folding part is equipped with an adjustable multi-channel crimping wheel set, which makes the folding of the carton smoother and the bonding more beautiful and accurate.

4. The carton stacking correction in the counting department, the stacking and output are safe and stable, accurate and error-free, digital control, easy to operate, and can be input without stopping.



Auto PP Tape Binding machine



1. Fast speed. If supporting printing and box-gluing linkage lines, if you press 10 cartons per pack, the printer can open up to 180 sheets per minute, if press 20 cartons per pack, the printer can open up to 360 sheets per minute.

2. Quick adjustment It takes about 1-2 minutes to adjust the order, and the operation is simple and convenient.

3. High degree of automation The adjustment calculation adopts PLC, encoder, input number, one-key adjustment.

4. Low operating power of the whole machine The power of the whole machine is 2.2KW, and the operating power is 1KW.

Structure and composition

1. Conveying part The connecting part of the box gluer, nail box machine and baler plays the role of buffering, checking and connecting.

2. Snapping part: Snap the carton in the length direction and ensure that the carton enters the packing part neatly and smoothly.

3. Packing Department Realizes the function of packing the carton, and aligns and presses the width of the carton to complete the packing task

Item Origin Qty.
Bearings NSK, HRB ALL
AC CONTACTOR, THERMAL RELAY Siemens ALL
PLC Siemens ALL
ENCODER Siemens ALL
TOUCH SCREEN Siemens ALL
DISPLAY SCREEN Siemens ALL
INVERTER Siemens ALL
AC CONTACTOR,PHOTOCELL SENSOR SWITCH Siemens ALL
DIE CUTTING RUBBER MAT CHIINA FAMOUS BRAND ALL
