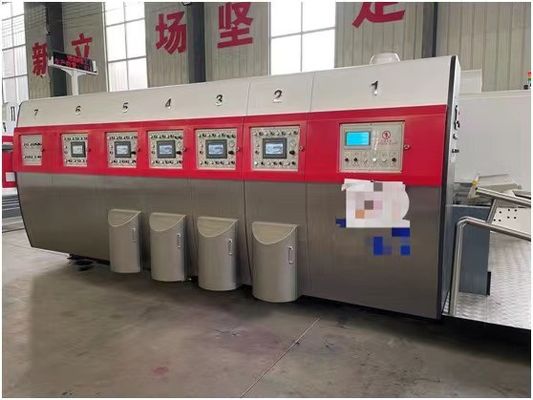

Custom Automatic Corrugated Carton Box Making Machine 220v Voltage

Custom Automatic Corrugated Carton Box Making Machine 220v Voltage
Custom Automatic Corrugated Carton Box Making Machine 220v Voltage

Large Image :  Custom Automatic Corrugated Carton Box Making Machine 220v Voltage

Product Details:
Place of Origin: China
Brand Name: HS
Certification: CE
Model Number: 1600x3000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD
Packaging Details: plastic film
Delivery Time: 100 -140days
Payment Terms: T/T
Supply Ability: 20 units/month

Custom Automatic Corrugated Carton Box Making Machine 220v Voltage

Description
Type: Automactic Carton Box Printing Machine Product Name: Carton Box Flexo Printing Slotting Machine
Name: Semi Automatic Printer Slotter Machine/ Carton Box Printing Machine Machine Type: Corrugated Board Carton Printing Machine
Product Type: Corrugated Board Key Words: Paper Corrugation Cardboard Production Line
Application: Carton Box Making Machine Processing Type: Paper Folding Machine
Ink Type: Water Based Ink Function: Carton Box Printing
Plate Type: Flexo Ink Printing Packaging Type: Paper Box Making Machine
Paper Type: Corrugated Board Condition: New Flexo Printer Slotter And Die Cutter Machine
Keywords: Paper Corrugation Cardboard Production Line Usage: Carton Printing Machine
Voltage: 380v Or 220v Or 415v According To Request
High Light:

Automatic Corrugated Carton Box Machine

,

Custom Corrugated Carton Box Machine

,

Corrugated Carton Box Making Machine 220v

Packaging Box Making Machine 1630 Four Color Printing Slotting Die Cutting Machine

 Model:1600x3000



Product information:

1. Advanced scientific design concept, European CE certification, independent computer operating table
2. Gap adjustment and phase adjustment are computer controlled
3. Main gear is made of high quality steel, imported from Taiwan
4. All electrical, electronic and pneumatic components adopt European standards
5. Suitable for dot printing on coated paper, or cardboard printing
6. Can be used with stacking machines or printing glue box machines



Model 1600x3000
Machine Speed(m/min) 200
Machine Max.speed (pcs/min) 150
Machine Max.feeder Size(mm) 1600x3000
Machine min.feeder Size(mm) 450x760
Machine Max. printer size (mm) 1500x2900
thick of printer Plate(mm) 7.2
Max. slotter Dep (mm) 560
Max. Thickness of Sheet(mm) 15

Machine size (LxWxH)



19852x6670x2700

FAQ:

1. Q: Are you a factory or trading company?
A: We are professional carton machinery manufacturer more than 20 years, is one of biggest factory in North of China. We have
exportor license.









Custom Automatic Corrugated Carton Box Making Machine 220v Voltage 0



 Independent Lead Edge Feeder

Item Descriptions



1. Lead Edge Feeding system

1.Vacuum transfer lead edge feeder.

2.Back buffle and side buffle are all motorized adjustment.

3.Feeder sliding block is of aluminum structure to guarantee a more stable working with less vibration.

4.Sheet counting in touch screen.

5.Skip feeding for bigger sheet.

7.Pneumatic lift device with end chain-lock switch for convenient operation.

2. Machine open/cloe

1.Button auto control for machine open/close with alarm device to safeguard operators.

2.Pneumatic locking system, whole machine locked on fixed track by feeder main pneumatic cylinder.

3. Feeding roll 1. Endurable rubber-coated feeding roll to add use life.
4. Zero return device 1.Computer adopts zero return device with memory function to guarantee the same adjustment standard, auto adjustment of correct position to reduce the waste of boards.


Features of printing units



1.CNC control system (Intelligent Control)

2.Environmental Protection and Energy Saving, use washable ink;

3.Printing accuracy can be ±0.15-±0.3mm;

4.Printing plate can be 90-130LPI;

5.Varnishing and die-cutting unit are available.





Features of slotting unit







Custom Automatic Corrugated Carton Box Making Machine 220v Voltage 1

Item Features
1. Slotting phase adjustment

1.High precision inverter to adjust the speed, 360 degree adjustment, quick time.

2.Phase zero positioning device to guarantee slotting position sameness.

2. Creasing wheel

1.Manual/motorized adjustment of creasing wheel and slotting knife head position through precise screw pole.

2.Creasing wheel down shaft, slotting knife down shaft adopt offset ring, close structure for precise positioning.

3. Slitting and slotting knife head

1.Blade thickness:7mm. Imported high quality alloyed moon-shaped saw slotting blades, high hardness, high endurability, high grindability.

2.Grinded and hard-chromed slotting shaft for stable running.

3.Manual adjustment of slotting knife head, creasing wheel and slitting knife head.

4.Auto detection device of slotting shaft circumferential position, auto record of the position and guarantee the position auto return.

5. Pre-creaser fixed before slotter.

6. Front knife and back knife seated on one shaft.



Features for Rotary Die Cutting Unit





Item Features





1. Die cutting mould cylinder( Down cylinder)

1.Die cutting cylinder is made by high quality steel, fine grinding, hard chromed.

2. Balance treatment to increase stable running.

3.Die cutting mould fixation screws M10, hole distance at 100mm at transversal direction and 18 equal units at circumferential direction.

4.Die cutting wooden mould thickness 13-15mm(five ply), 16-18mm(three ply).

2. Rubber mat cylinder(Down cylinder)

1.Mat cylinder uses high quality steel, grinding, hard chromed.

2.Balance treatment for stable running.

3.Rubber mat thickness 8mm, width 250mm.

4.Rubber mat cylinder mechanical rotary direction change 40mm distance movement structure, movement speed same as the machine running speed.

5.Manual adjustment of die cutting mould gap, adjustment range: 0-16mm.

3. Phase adjustment device

1.Satellite gearwheel structure

2.PLC and encoder control of die cutting phase adjustment for start and stop adjustment.









Custom Automatic Corrugated Carton Box Making Machine 220v Voltage 2





Custom Automatic Corrugated Carton Box Making Machine 220v Voltage 3

Custom Automatic Corrugated Carton Box Making Machine 220v Voltage 4

Take Your Packaging to the Next Level with High-End Printing Slotter Die Cutters:



Packaging is an important aspect of any business. It is the first thing that the customer sees and it should accurately reflect the brand and product it represents. A well-designed and printed packaging can make a lasting impression on the customer and even influence their buying decision. This is why it is important to invest in high-end printing, slotter, and die cutters for your packaging needs.

Printing

High-end printing can make a big difference in the appearance of your packaging. It allows for crisp, clear images and vibrant colors that can enhance the overall look of the package. In addition, printing can also provide additional information to the customer, like instructions, product information, and legal disclaimers, in a clear and concise manner. This can help the customer make the right buying decision and even improve their satisfaction with the product.

One of the popular printing techniques used for packaging is flexography. Flexography employs a flexible relief plate that is used to transfer ink onto the substrate. It is ideal for printing on materials like plastic, paper, and foil. The process is fast, efficient, and produces high-quality prints. Another popular method is digital printing, which offers quick turnaround times and the ability to print small runs.
