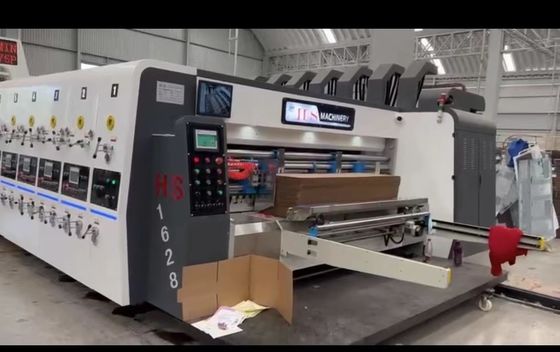

Solid Effective Corrugated Cardboard Machine With Digital Input

Solid Effective Corrugated Cardboard Machine With Digital Input
Solid Effective Corrugated Cardboard Machine With Digital Input

Large Image :  Solid Effective Corrugated Cardboard Machine With Digital Input

Product Details:
Place of Origin: China
Brand Name: HS
Certification: CE
Model Number: 700x2000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: usd
Packaging Details: plastic film
Delivery Time: 120 days
Payment Terms: T/T
Supply Ability: 20 units/month

Solid Effective Corrugated Cardboard Machine With Digital Input

Description
Type: Carton Printer Slotter Die Cutter Machine Usage: Paper Printer
Warranty: 1 Year Product Name: Carton Box Flexo Printing Slotting Machine
Name: Flexo Ink Corrugated Carton Flexo Printing Machine, Ink Type: Water Based Ink
Speed: 500 Pcs/min Machine Type: Corrugated Carton Box Flexo Printing Slotting Machine
Product Name: Factory Direct Price Automatically Ink Jet Code Printer,carton Box Flexo Printing Slotting Machine
High Light:

Solid Effective Corrugated Cardboard Machine

,

Corrugated Cardboard Machine With Digital Input

Automatic Four Color Flexo Printer Rotary Die Cutter  Auto Stacker

                                      Model : HKM-1200x2400

Corrugated Cardboard Machine



Technical data:

Max.design machine speed: 200 sheets / min.

Economic production speed: 180 sheets / min.

Solid Max. sheet size:1200×2400mm

Min. paper coverage area: 380(full block print)×650mm.

Solid Effective printing area: 1200×2300mm.

Printing precision: ≤±0.5mm.

Slotting and die-cutting precision: ≤±1.5mm.

The standard thickness of the printing plate: 7.2mm.

Skip feeding size is 1500×2400mm.

Body thickness 60mm

Gear thickness:50-70mm



 Solid Effective Corrugated Cardboard Machine With Digital Input 0



Electrical auto control system:



1.PLC control, auto sheet counting, speed indication, skip feeding, trouble

alarming, etc..

2.Main electrical parts are of Schneider or Omron or Siemens.

3.Main machine start protection: no lock, no run, for wrong operation.

4.Motorized walk: motorized open and close, pneumatic lock. Motorized walk with continuous alarming to safeguard the maintenance

technicians. Auto braking device to ensure printing unit non-movement.

5. Emergency stop: inside emergency stop on each unit to stop machine

walking during maintenance.



 1. Fast change printing plate, with footstep to control cylinder rotate clockwise or anticlockwise
2.Feed roller, press roller, rubber roller, anilox roller gap adjust with electric self-lock part
3.Printing phase adjusted by PLC in 360degree with digital input, do when machine running or stop
4.Pneumatic brake device to keep printing register fixed, when units separate or clean, brake limit gear rotate, keep original gear position.
5.Pneumatic lift anilox roller for ink, motorized ink will no dry.
6.Printing cylinder made of seamless steel pipe, be grinded with chrome plated, do balance treatment, running smooth and steady.
7.Lift-down design( when feed sheets anilox roller down in order, stop sheet lift rollers in order)
8.Double diagram pump ink, recycle automatically, Ink supply is controlled by PLC, automatic cleaning and ink addition,With filter, simple operation, easy maintenance, ink supply more stable.
9.Memory function, after clean plate it back to original position
10. Printing precision: +-0.5mm
11.Printing cylinder horizontal move by motorized
12.5 units ceramic roller with doctor blade,high printing quality
13.The doctor blade adopts the pneumatic propulsion mode, the doctor blade is closer together to the ceramicroller, and the ink is more uniform
14.Air suction box table adopts electric adjustment clearance, PLC control digital display,The worktable adopts centrifugal high pressure fan, and the wind force size is controlled by frequency converter. The imprint roller is refined with high quality seamless steel pipe, surface grinding and hard chromium plating.
