Powerful Corrugated Box Making Machinery 415v Slotting Die Cutting Machine

Description
Name: Corrugated Box Making Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas
Condition: New Packaging Material: Paper
Product Type: Paper Box Making Machine Voltage: 380v Or 220v Or 415v According To Request
High Light:

Powerful Corrugated Box Making Machinery

,

Corrugated Box Making Machinery 415v

Corrugated Box Making Machinery Two Color Ink Printing Slotting Die Cutting Machine
                                                                               Model:1800x4200







Features:
 1.The carton printing slotting machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
2·Auto high quality materials and parts.
3·Well hardened and ground transmission gears, hardness more than 60(HRC).
4·Auto zero return and auto reset.
5·All gaps between cylinders and rollers are computerized and/or motorized control.




A   Feeder

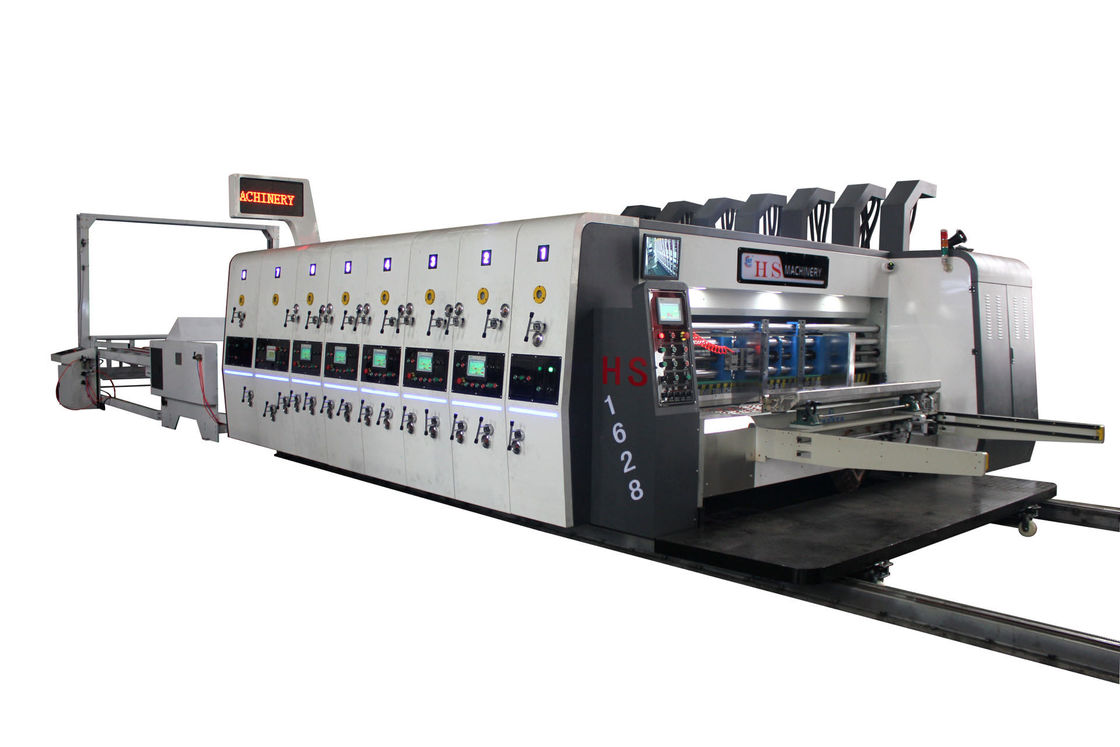

Powerful Corrugated Box Making Machinery 415v Slotting Die Cutting Machine 0
1.Button auto control for machine open/close with alarm device to safeguard operators.
2.Pneumatic locking system, whole machine locked on fixed track by feeder main pneumatic cylinder.
3.Button auto control for machine open/close with alarm device to safeguard operators.
4.Pneumatic locking system, whole machine locked on fixed track by feeder main pneumatic cylinder.
5.  Endurable rubber-coated feeding roll to add use life.
6. Computer adopts zero return device with memory function to guarantee the same adjustment standard, auto adjustment of correct position to reduce the waste of boards.

 B .Printer Uint


Features;
1.Seamless steel pipe for precise processing, balance treatment for stable running, grinding and hard chromed
2.Impression cylinder gap adopts adjustable offset ring, with close structure, precise positioning, adjustment scope: 0-12mm.
3.Up feeding roll: grinded and hard chromed.
4..Lower feeding roll: grinded, sand-frosted and hard-chromed.
5 .Lower feeding shaft gap adjustment adopts offset ring with close structure, correction positioning, adjustable at 0-12mm.
6.Seamless steel pipe for precise processing, balance treatment for stable running, grinding and hard chromed.
7.Impression cylinder gap adopts adjustable offset ring, with close structure, precise positioning, adjustment scope: 0-12mm
8.Up feeding roll: grinded and hard chromed.
9.Lower feeding roll: grinded, sand-frosted and hard-chromed.
10.Lower feeding shaft gap adjustment adopts offset ring with close structure, correction positioning, adjustable at 0-12mm.
11. Seamless steel pipe for precise processing, balance treatment for stable running, grinding and hard chromed
12.Steel pipe rubber-coated durable for longlife.
13 .Super clutch and auto empty run device against ink dry.
14 .Midheight grinding for high LPI big space printing.
15 . Rubber roll open/close adopts worm gearbox manual adjustment, with worm gearbox for gap adjustment with scale indication
16. Seamless steel pipe for precise processing, balance treatment for stable running, grinding and hard chromed.
17.Longlife running, anti-grinding and erosion, ideal ink transferring and controlling performance.
18.Pneumatic anilox auto elevation device and empty run device.
19.Speed difference between anilox roll and rubber roll for ink doctoring effect to increase printing quality.
20.Single-way pneumatic membrane auto circulating pump.
21 . Ink filtering net to filter the dirt for nice printing result.
22 .Encased ink chamber.
23 .Satelite gear wheel design.
24 .Motorized circumferential adjustment, digital display, 360 degree run or stop adjustment.
25 .PLC control, quick reach, convenient for cliché adjustment.
26. Manual gap Pressure adjustment for all units.
27. Electromagnetic braking structure.
28. When machine unit separates or adjust phase, braking system to control the running of machine units to keep original gear positioning point.





Sheet size 1800X4200mm
Design speed: 80pcs/min.
Max. working speed: 60pcs /min.(by sheet size and quality)
Max.working size: 1800X4200
Skip feeding size: 2100mmX4500mm
Min.sheet size: 350mmX600mm
Max.printing area: 1800X4000mm
Cliché thickness: 7mm
Slot width x Slot depth: 7mmX400mm
Max. paper thickness 10mm
Slotting accuracy ±1.5mm
Printing registration(medium speed): ±0.5mm
Mesh mode: Optional(120-250LPI)
Dimension of the whole machine 20200(L)x4600(W)x2800(H)mm
Total power(KW) 60KW
Total weight(Ton) 70TONS



C. Rotary Die Cutter
1.OD: 530mm
2.Mat cylinder uses high quality steel, grinding, hard chromed.
3.Balance treatment for stable running.
4.Rubber mat thickness 8mm, width 250mm.
5.Rubber mat cylinder mechanical rotary direction change 40mm distance movement structure, movement speed same as the machine running speed.
6.Motorized adjustment of die cutting mould gap, adjustment range: 0-16mm.
7.OD:ø600mm(with die cutting mould thickness);without mould: ø 550mm.
8.Die cutting cylinder is made by high quality steel, fine grinding, hard chromed.
9. Balance treatment to increase stable running.
10.Die cutting mould fixation screws M10, hole distance at 100mm at transversal direction and 18 equal units at circumferential direction.
11.Die cutting wooden mould thickness 13-15mm(five ply), 16-18mm(three ply).

D .Vibration Stripper Auto Stacker
1.Photocell sensor system to control table elevation, auto elevation according to paperboard stacking height, table elevation transmission with braking function and safety device to ensure fixed position.
2.Pneumatic adjustment of paperboard stacking arm.
3.Stacking arm rotates belts, separate adjustment of belt tension, not limited by belt length
4.Powerful transferring belts to guarantee friction and long life.
5. Pneumatic cylinder control.
6. Auxilliary board delivery device for non-stop delivery.
7. Pneumatic stacking board for temporary support, manual adjustment of back buffle position.
8. To remove the die cutting waste by the belt vibration action.
