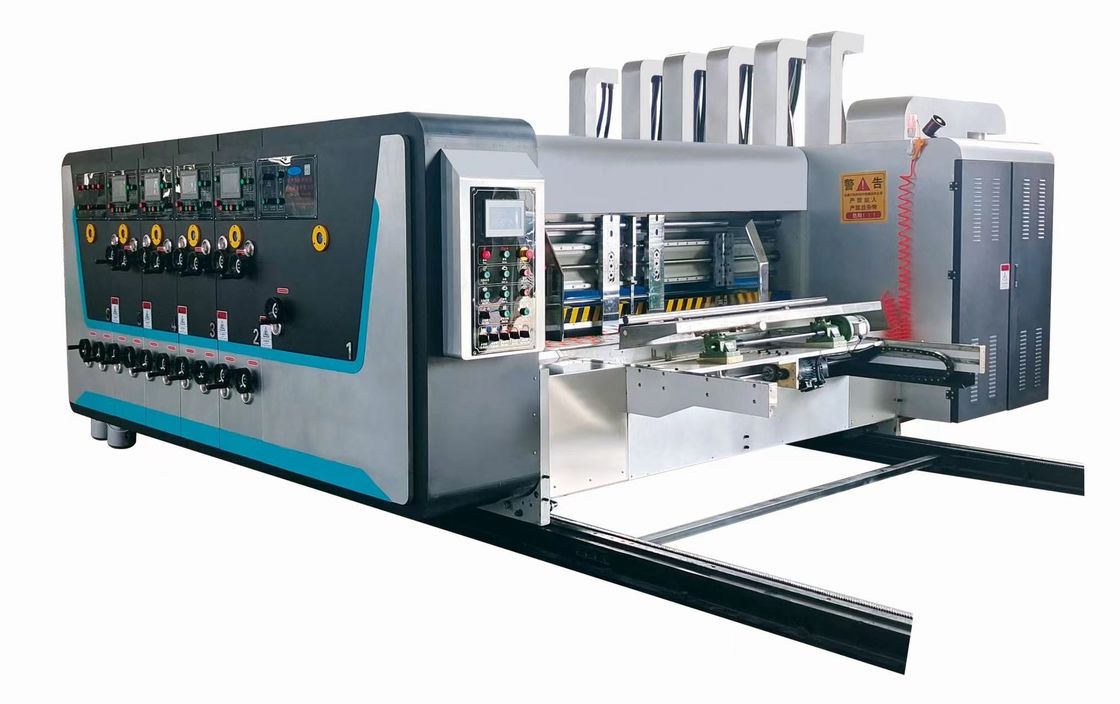

Printer Corrugated Slotter Machine Carton Printing Slotting Die Cutting

Printer Corrugated Slotter Machine Carton Printing Slotting Die Cutting
Printer Corrugated Slotter Machine Carton Printing Slotting Die Cutting

Large Image :  Printer Corrugated Slotter Machine Carton Printing Slotting Die Cutting

Product Details:
Place of Origin: China
Brand Name: HS
Certification: CE
Model Number: 1600x3200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD
Packaging Details: plastic film
Delivery Time: 100 -140days
Payment Terms: T/T
Supply Ability: 20 units/month

Printer Corrugated Slotter Machine Carton Printing Slotting Die Cutting

Type: Carton Printer Slotter Die Cutter Machine Product Name: High Quality Portable Handheld Printer Carton Box Printing Machine
Name: Box Making Machines And Carton Paper Making Machine Machine Type: Corrugated Paperboard Making Machine
Product Type: Paper Box Making Machine Key Words: Paper Corrugation Cardboard Production Line
Application: Packing Box For All Different Skincare Products Ink Type: Water Based Ink
Function: Printing Packaging Box Usage: Corrugated Box
Printing: Offset Printing Packaging Box
High Light:

Printer Corrugated Slotter Machine


Corrugated Slotter Machine


Printing Slotting Die Cutting

                   Carton Box Making Machine Water Based Ink Printing Slotting And Die Cutting Machine







Computer control department

1.  The machine and electrical appliances are all made of well-known brands: touch screen (human-machine interface).

2.  Machine zeroing, preset position and automatic plate alignment functions: printing, slotting phase zeroing and preset to ensure that all printing on the first board is inked, and the second board is basically adjusted in place, which can compensate for errors during operation.

3.  Memory reset function: when the printing plate needs to be repaired or wiped, this function can be used. After the repair or wiping, it will reset automatically without adjustment.

4.  Order phase storage function: 999 order phases can be stored. After the stored order, the equipment automatically memorizes the phase position of the printing plate. When the next time the stored order is enabled, after the plate is hung, the equipment will automatically adjust to the correct position of the memory, which greatly saves the adjustment time of changing the order.


Standard equipments:

A. Independent Lead Edge Feeder;

B. printers

C. motorized slotter

D. RotaryDie Cutter with auto trimming device;

E. Auto Stacker

Model 1600x3200
Machine Speed(m/min) 180
Machine Max.speed (pcs/min) 150
Machine Max.feeder Size(mm) 1600x3200
Machine min.feeder Size(mm) 450x760
Machine Max. printer size (mm) 1600x3100
thick of printer Plate(mm) 7.2
Max. slotter Dep (mm) 560
Max. Thickness of Sheet(mm) 15

Machine size (LxWxH)



Description for Water Based Ink Printing Slotting And Die Cutting Machine

A water-based ink printing slotting and die-cutting machine is a specialized piece of equipment used in the packaging industry. It is designed to print and cut corrugated cardboard and other materials used in packaging boxes, cartons, and containers.


This machine is equipped with a printing unit that uses water-based inks to print high-quality graphics, text, and images on the surface of the material. The ink is eco-friendly, has low VOC emissions, and is easy to clean up, making it an excellent choice for companies looking to reduce their environmental impact.

Additionally, this machine has slotting and die-cutting units that create the shapes and openings needed for the packaging to be assembled. The slotting unit cuts grooves and slots into the corrugated material to create tabs and slots that interlock to form the box structure. The die-cutting unit cuts the material into the required shape and size, creating openings for handles, windows, or other features.

This machine is ideal for high-speed production, where accuracy and efficiency are essential, and can handle a wide range of corrugated materials of different thicknesses. It is a versatile piece of equipment that streamlines the packaging production process and helps companies to maintain consistent product quality while meeting the demands of their customers.


Lead Edge Feeder


Negative pressure adsorption multi-row wheel feeding structure, no damage to cardboard, and effectively overcome the cardboard warping, improve the accuracy of paper feeding, make high and low speed paper feeding more accurate.
Intelligent adjustment of the paper feeding trip, reduce the pressure of the paper roller.
Frequency converter controls the vacuum airflow and pressure to match the cardboard size.
Positioned by the leading edge, reduce paper feeding error, improve the accuracy of paper feeding and slotting.
Improve the stability of high-speed operation, reduce noise and mechanical vibration.
The position of left and right baffle adopts electric digital control.
The back support cardboard frame electric control before and after, speed up the setting speed.
Adjust the clearance of front board manually.


Features of printing units


1. Printing roller
1) Seamless steel pipe material, surface grinding, hard chrome plating.
2) Balance correction, smooth operation.
3) Reel groove plate, the use of infinite wire wheel self-locking device, so that the plate alignment accurate.
4) full version of the groove, applicable to 9mm×3mm version.
5) Loading and unloading printing plate, foot switch electric control positive and negative rotation.
6) Orientation adjustment interface; With automatic zeroing, automatic plate setting and locking recovery printing position and other functions.

The anilox roll
1) The roller adopts Changzhou Haili or Yudong company products, the net hole is neat, the net wall is neat, the cable can choose 200-280 lines/inch.
2) the net grain rod diameter is ¢213.5mm..
4) roller clearance screen display handle type manual adjustment, adjustment range 1-8mm,
5) Pneumatic lifting of the net roller, to prevent repeated ink printing plate and short shutdown, the ink in the net roller point dry.
6) the roller gap adopts self-locking structure.


Features of slotting unit

Scorer wheel gap, turbo box electric adjustable, graduated disc display adjust range -mm. Alloy tool steel with heat treatment, grinded slot teeth, good hardness and toughness. Scorer wheel, guide wheel, slot knife seat synchronous transverse displacement, PLC touch screen and electric button dual control. Planet gear structure, absolute value plate positioning, auto zero

Printer Corrugated Slotter Machine Carton Printing Slotting Die Cutting 0

                              Printer Corrugated Slotter Machine Carton Printing Slotting Die Cutting 1


Features for Rotary Die Cutting Unit


1.Blade thickness:7mm. Imported high quality alloyed moon-shaped saw slotting blades, high hardness, high endurability, high grindability.

2.Grinded and hard-chromed slotting shaft for stable running.

3.Manual adjustment of slotting knife head, creasing wheel and slitting knife head.

4.Auto detection device of slotting shaft circumferential position,


                        Printer Corrugated Slotter Machine Carton Printing Slotting Die Cutting 2
